Componentes
COMPONENTES

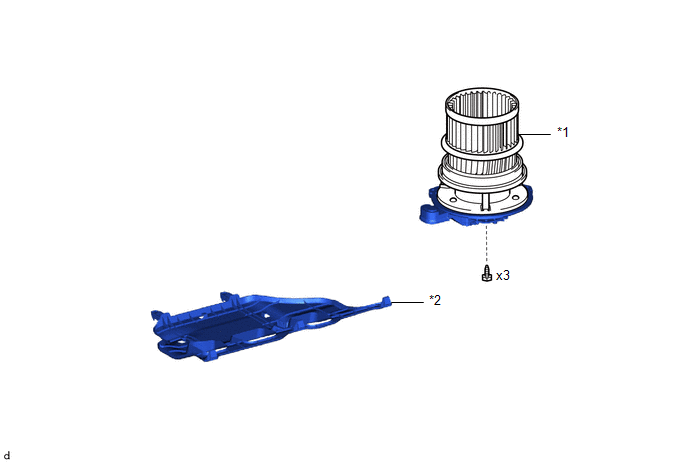

ILUSTRACIÓN
*1 |
SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR |
*2 |
SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2 |
ExtracciÓn
EXTRACCIÓN
PROCEDIMIENTO
1. EXTRAIGA EL SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2
Haga clic aquí
2. EXTRAIGA EL SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR

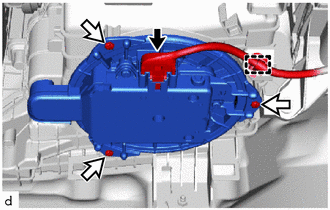

(a) Desenganche la abrazadera. |
|
(b) Desconecte el conector.
(c) Extraiga los 3 tornillos y el subconjunto del motor del soplador con ventilador.
AVISO:
Reemplace el motor del soplador por el subconjunto del ventilador si se ha caído o ha recibido un fuerte impacto.
InstalaciÓn
INSTALACIÓN
PROCEDIMIENTO
1. INSTALE EL SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR
(a) Instale el subconjunto del motor del soplador con ventilador con los 3 tornillos. AVISO: Reemplace el motor del soplador por el subconjunto del ventilador si se ha caído o ha recibido un fuerte impacto. |
|
(b) Conecte el conector.
(c) Enganche la abrazadera.
2. INSTALE EL SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2
Haga clic aquí
Toyota CH-R Manual de Taller > Sistema De Transeje Variable Continuo: Tabla De La FunciÓn A Prueba De Fallos
TABLA DE LA FUNCIÓN A PRUEBA DE FALLOS
Descripción
Con esta función se minimiza la pérdida de las funciones del sistema de transeje
variable continuo (CVT) cuando se produce una avería en un sensor o en un solenoide.
Función a prueba de fallos
(a) Lista de controles a prueba de fallos:
...
