Toyota CH-R Manual de Taller: Motor Del Soplador Delantero (fabricados Para Valeo)

Toyota CH-R Manual de Taller / CalefacciÓn / Aire Acondicionado / Motor Del Soplador Delantero (fabricados Para Valeo)

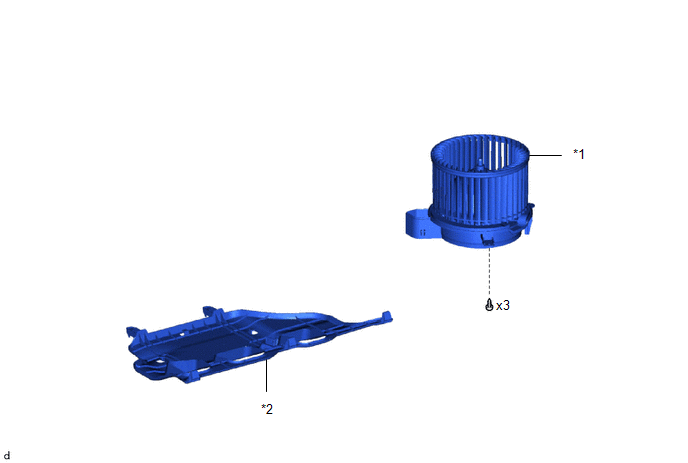

Componentes

COMPONENTES

ILUSTRACIÓN

*1

SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR

*2

SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2

ExtracciÓn

EXTRACCIÓN

PROCEDIMIENTO

1. EXTRAIGA EL SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2

Haga clic aquí

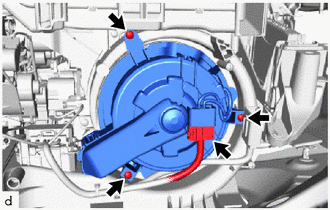

2. EXTRAIGA EL SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR

(a) Desconecte el conector.

(b) Extraiga los 3 tornillos y el subconjunto del motor del soplador con ventilador.

AVISO:

Reemplace el motor del soplador por el subconjunto del ventilador si se ha caído o ha recibido un fuerte impacto.

InspecciÓn

INSPECCIÓN

PROCEDIMIENTO

1. INSPECCIONE EL SUBCONJUNTO DEL SOPLADOR CON MOTOR DEL VENTILADOR

(a) Compruebe el funcionamiento.

(1) Aplique tensión de la batería al subconjunto del soplador con motor del ventilador y compruebe el funcionamiento del motor.

Valor especificado:

Condición de medida

Valor especificado

Terminal positivo de la batería (+) → Terminal 2

Terminal negativo de la batería (-) → Terminal 1

El subconjunto del motor del soplador con ventilador funciona sin problemas.

Si el resultado no es el especificado, sustituya el subconjunto del motor del soplador con ventilador.

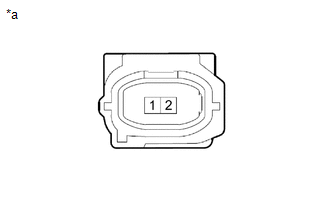

*a

Componente no conectado al mazo de cables

(Subconjunto del motor del soplador con ventilador)

InstalaciÓn

INSTALACIÓN

PROCEDIMIENTO

1. INSTALE EL SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR

(a) Instale el subconjunto del motor del soplador con ventilador con los 3 tornillos.

AVISO:

Reemplace el motor del soplador por el subconjunto del ventilador si se ha caído o ha recibido un fuerte impacto.

(b) Conecte el conector.

2. INSTALE EL SUBCONJUNTO DE LA CUBIERTA INFERIOR DEL PANEL DE INSTRUMENTOS N° 2

Haga clic aquí
