Componentes
COMPONENTES

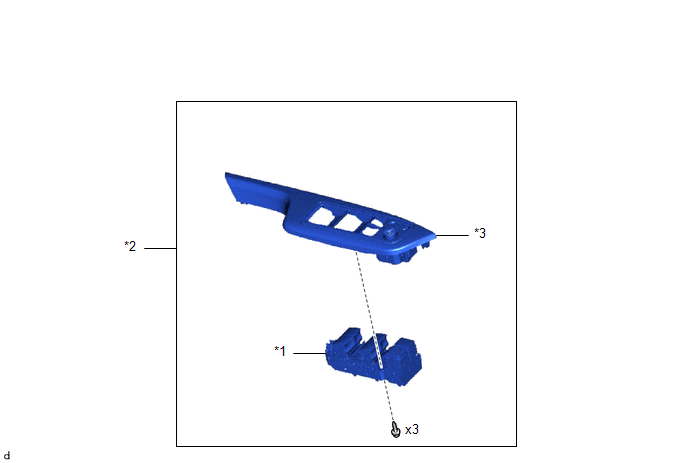

ILUSTRACIÓN
*1 |
CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX |
*2 |
CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX CON PANEL SUPERIOR DE LA BASE DEL REPOSABRAZOS DELANTERO |
*3 |
PANEL BASE EN LA PARTE SUPERIOR DEL REPOSABRAZOS DE LA PUERTA DELANTERA |
- |
- |
ExtracciÓn
EXTRACCIÓN
PROCEDIMIENTO
1. EXTRAIGA EL CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX CON EL PANEL SUPERIOR DE LA BASE DEL REPOSABRAZOS DELANTERO (para el lado del conductor)
Haga clic aquí
2. EXTRAIGA EL CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX

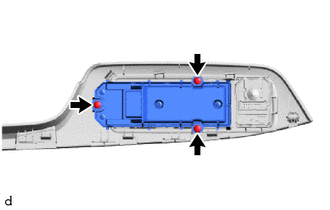

(a) Extraiga los 3 tornillos y el conjunto del interruptor maestro de la red múltiplex. |
|
InspecciÓn
INSPECCIÓN
PROCEDIMIENTO
1. INSPECCIONE EL CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX

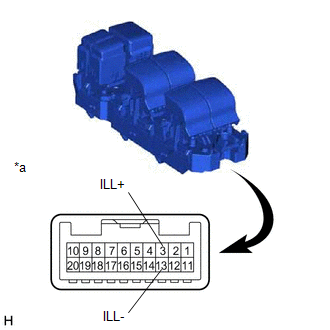

(a) Compruebe si el LED se enciende. (1) Aplique tensión de la batería al conjunto del interruptor maestro de la red múltiplex y compruebe si se enciende el LED. OK:
Si el resultado no es el especificado, sustituya el conjunto del interruptor maestro de la red múltiplex. |
|
InstalaciÓn
INSTALACIÓN
PROCEDIMIENTO
1. INSTALE EL CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX
(a) Coloque el conjunto del interruptor maestro de la red múltiplex con los 3 tornillos.
2. INSTALE EL CONJUNTO DEL INTERRUPTOR MAESTRO DE LA RED MÚLTIPLEX CON EL PANEL SUPERIOR DE LA BASE DEL REPOSABRAZOS DELANTERO (para el lado del conductor)
Haga clic aquí
Toyota CH-R Manual de Taller > Conjunto Del Transeje Variable Continuo (si No Se Utiliza El Puente De Soporte
Del Motor): Componentes
COMPONENTES
ILUSTRACIÓN
*1
CABLE DEL MOTOR
*2
SUBCONJUNTO DEL TRAVESAÑO DE LA SUSPENSIÓN DELANTERA
*3
VÁSTAGO DE CONTROL DE MOVIMIENTO DEL MOTOR N° 2
*4
MANGUERA DE DERIVACIÓN DE AGUA N° 3
...
