Al utilizar un gato hidráulico, siga las instrucciones del manual que lo acompaña y realice la operación de forma segura.
Al levantar el vehículo con el gato hidráulico, colóquelo correctamente.
Una colocación incorrecta podría producir daños en el vehículo u ocasionar lesiones.

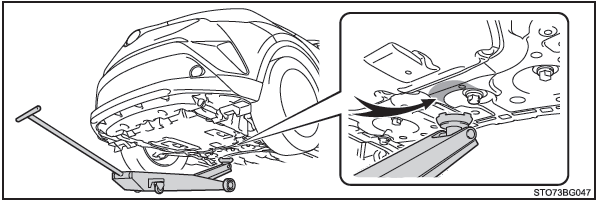

◆ Parte delantera

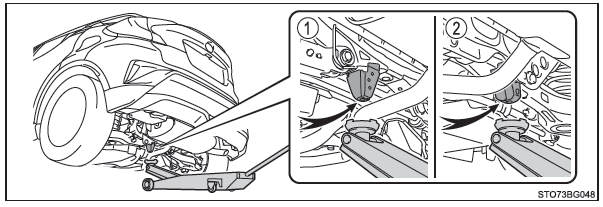

◆ Parte trasera
