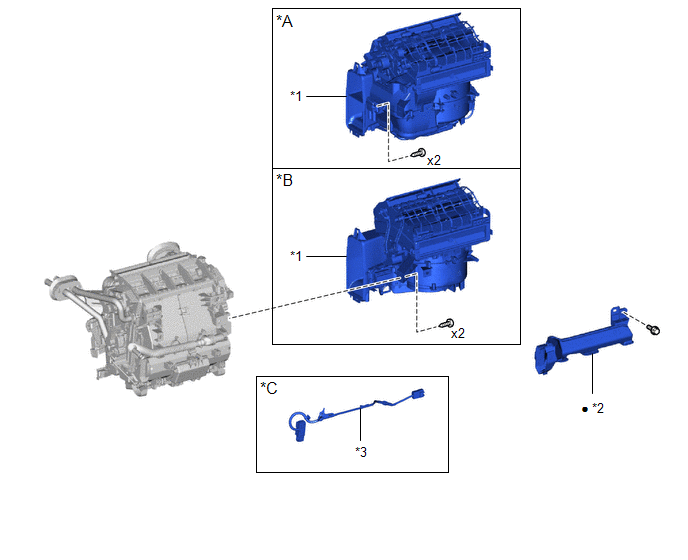

COMPONENTES
ILUSTRACIÓN
*A |
Para tipo doble: |
*B |
Para tipo único |
*C |
Con calentador de PTC |
- |
- |
*1 |
CONJUNTO DEL SOPLADOR |
*2 |
CONDUCTO DE AIRE N° 2 |
*3 |
CABLE DEL PANEL DE INSTRUMENTOS N° 3 |
- |
- |
● |
Pieza no reutilizable |
- |
- |
ILUSTRACIÓN
*A |
Para tipo único |
- |
- |
*1 |
PLACA DE CUBIERTA DEL FILTRO DE AIRE |
*2 |
SUBCONJUNTO DEL FILTRO DE AIRE |
*3 |
SUBCONJUNTO DEL MOTOR DEL SOPLADOR CON VENTILADOR |
*4 |
RESISTOR DEL SOPLADOR |
*5 |
FILTRO DEL AIRE LIMPIO |
*6 |
SUBCONJUNTO DEL SERVORREGULADOR DEL SOPLADOR N° 1 |
ILUSTRACIÓN
*A |
Para tipo doble: |
- |
- |
*1 |
PLACA DE CUBIERTA DEL FILTRO DE AIRE |
*2 |
SUBCONJUNTO DEL FILTRO DE AIRE |
*3 |
RESISTOR DEL SOPLADOR |
*4 |
FILTRO DEL AIRE LIMPIO |
*5 |
SUBCONJUNTO DEL SERVORREGULADOR DEL SOPLADOR N° 1 |
- |
- |
Toyota CH-R Manual de Taller > Elemento De La SuspensiÓn Delantera: Componentes
COMPONENTES
ILUSTRACIÓN
*1
CUBIERTA INFERIOR DEL MOTOR N° 1
*2
CUBIERTA INFERIOR IZQUIERDA TRASERA DEL MOTOR
*3
CUBIERTA INFERIOR DERECHA TRASERA DEL MOTOR
-
-
N*m (kgf*cm, l ...
