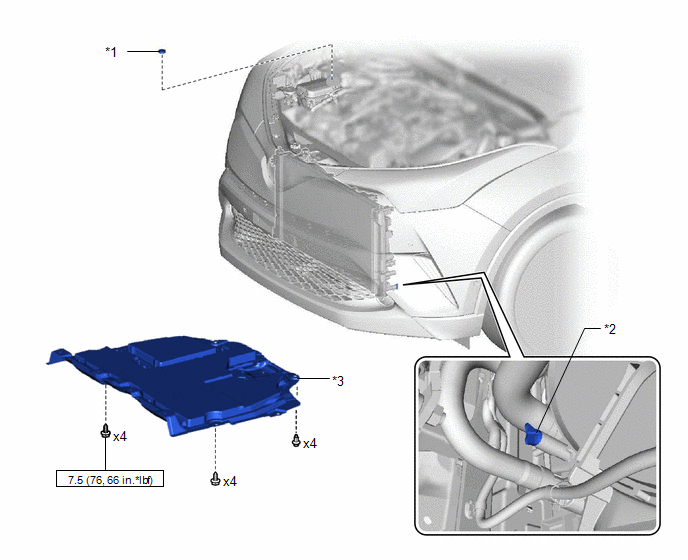

COMPONENTES
ILUSTRACIÓN
|
*1 |
TAPÓN DEL DEPÓSITO AUXILIAR |
*2 |
TAPÓN DE LA LLAVE DE DRENAJE DEL RADIADOR |
|
*3 |
CUBIERTA INFERIOR DEL MOTOR N° 1 |
- |
- |
|
N*m (kgf*cm, lbf*pi.): Par de apriete especificado |
- |
- |
