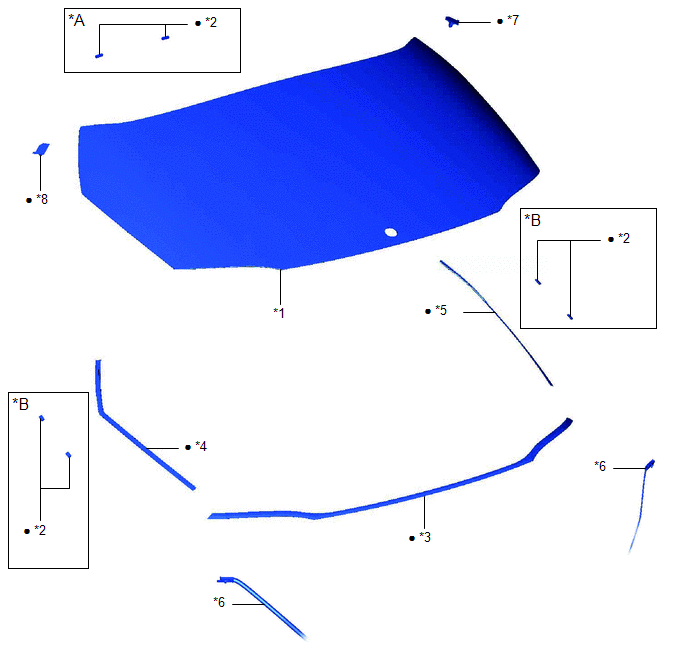

COMPONENTES
ILUSTRACIÓN
*A |
Para el lado superior |
*B |
Lateral |
*1 |
LUNETA TRASERA |
*2 |
ESPACIADOR DE LA LUNETA TRASERA |
*3 |
MOLDURA INFERIOR DE LA LUNETA TRASERA |
*4 |
MOLDURA EXTERIOR IZQUIERDA DE LA LUNETA TRASERA |
*5 |
MOLDURA EXTERIOR DE LA LUNETA TRASERA DERECHA |
*6 |
CABLE DE LA PUERTA DEL MALETERO N° 1 |
*7 |
SEPARADOR DEL CRISTAL DE LA LUNETA TRASERA N° 1 |
*8 |
SEPARADOR DEL CRISTAL DE LA LUNETA TRASERA N° 2 |
● |
Pieza no reutilizable |
- |
- |
