UbicaciÓn De Las Piezas
UBICACIÓN DE LAS PIEZAS

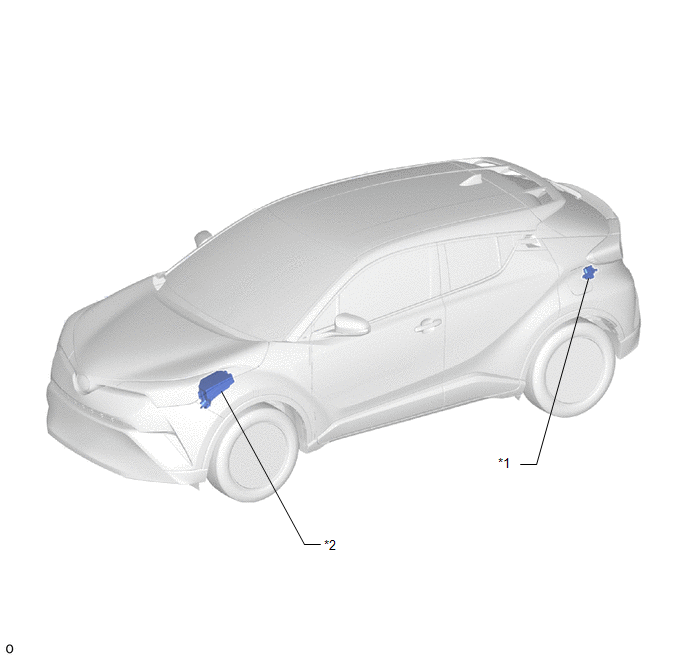

ILUSTRACIÓN
*1 |
TAPA DEL DEPÓSITO DE COMBUSTIBLE CON CONJUNTO DEL BLOQUEO DEL MOTOR |
*2 |
BLOQUE DE RELÉS DEL COMPARTIMIENTO DEL MOTOR N° 1 - FUSIBLE FUEL OPN |

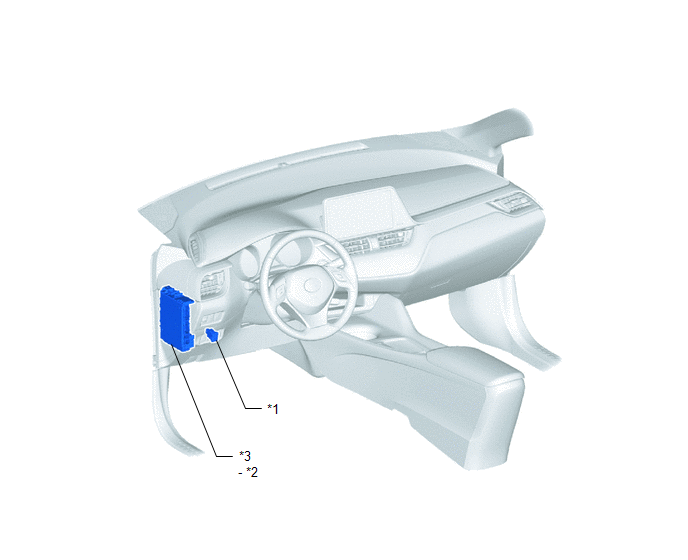

ILUSTRACIÓN
*1 |
INTERRUPTOR DE APERTURA DE LA TAPA DEL DEPÓSITO DE COMBUSTIBLE |
*2 |
RELÉ FUEL OPN |
*3 |
CONJUNTO DEL BLOQUE DE EMPALMES DEL PANEL DE INSTRUMENTOS |
- |
- |
ComprobaciÓn Del Funcionamiento
COMPROBACIÓN DEL FUNCIONAMIENTO
INSPECCIONE EL SISTEMA DE APERTURA DE LA TAPA DEL DEPÓSITO DE COMBUSTIBLE
(a) Apriete el interruptor de apertura de la tapa del depósito de combustible y compruebe que se abre.
Diagrama Del Sistema

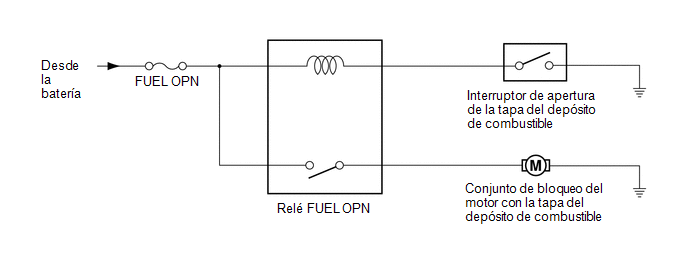

DIAGRAMA DEL SISTEMA
Tabla De SÍntomas De Problemas
TABLA DE SÍNTOMAS DE PROBLEMAS
OBSERVACIÓN:
Síntoma |
Área posiblemente afectada |
Vinculado |
---|---|---|
La apertura de la tapa del depósito de combustible no funciona |
Interruptor de apertura de la tapa del depósito de combustible |
|
Conjunto de bloqueo de la tapa del depósito de combustible con motor |
|
|
Mazo de cables o conector |
- |
Toyota CH-R Manual de Taller > Enfriador De Aceite: InstalaciÓn
INSTALACIÓN
PROCEDIMIENTO
1. INSTALE EL SOPORTE DEL ENFRIADOR DE ACEITE DE LA TRANSMISIÓN
(a) Instale el soporte del enfriador de aceite de la transmisión en el
conjunto del transeje variable continuo con los 3 pernos en el orden que
se muestra en la ilustración.
Torque: ...
