COMPONENTES

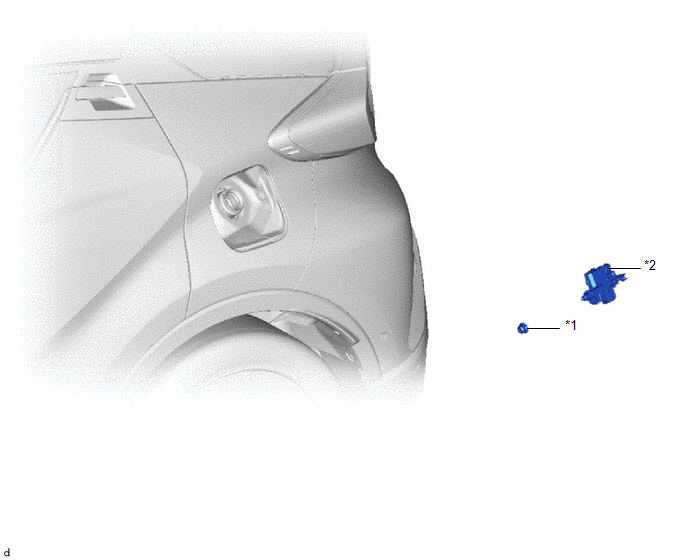

ILUSTRACIÓN
*1 |
RETÉN DE BLOQUEO DE LA TAPA DE APERTURA DEL DEPÓSITO DE COMBUSTIBLE |
*2 |
CONJUNTO DE BLOQUEO DE LA TAPA DEL DEPÓSITO DE COMBUSTIBLE CON MOTOR |
Toyota CH-R Manual de Taller > Sistema De NavegaciÓn: Circuito del interruptor del freno de estacionamiento
DESCRIPCIÓN
Este circuito conecta la ECU de control de derrape (conjunto del actuador del
freno) con el conjunto del receptor de radio y pantalla.
DIAGRAMA DE CONEXIONES
PROCEDIMIENTO
1.
COMPRUEBE EL SISTEMA DEL FRENO DE ESTACIONAMIENTO ELÉCTRICO
(a) Compru ...
Toyota CH-R Manual de Taller > Conjunto Del Cable De Control De Bloqueo Del CapÓ: InstalaciÓn
INSTALACIÓN
PROCEDIMIENTO
1. INSTALE EL CONJUNTO DEL CABLE DE CONTROL DE BLOQUEO DEL CAPÓ
(a) Inserte el conjunto del cable de control de bloqueo del capó en el compartimiento
del motor.
(b) Enganche el ojal.
*a
Ojal
-
-
(c) Conecte e ...
