COMPONENTES

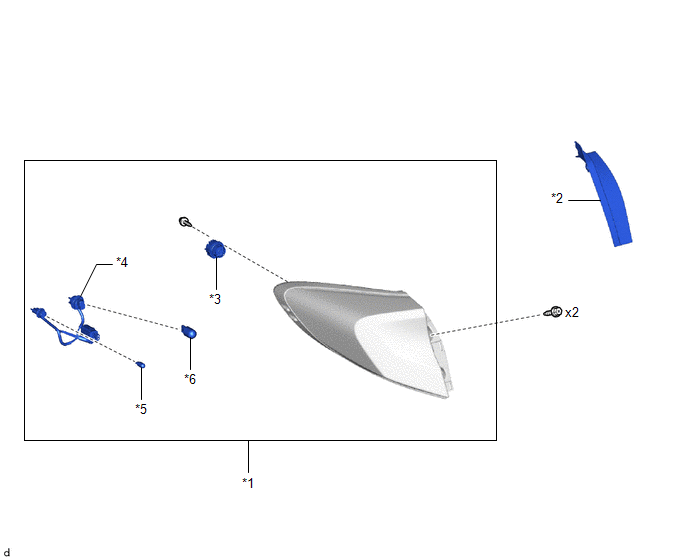

ILUSTRACIÓN
*1 |
CONJUNTO DE LAS LUCES COMBINADAS TRASERAS |
*2 |
CUBIERTA DE LAS LUCES COMBINADAS TRASERAS |
*3 |
LED DE LAS LUCES COMBINADAS TRASERAS |
*4 |
ZÓCALO Y CABLE DE LAS LUCES COMBINADAS TRASERAS |
*5 |
BOMBILLA DE LA LUZ DE POSICIÓN LATERAL TRASERA |
*6 |
BOMBILLA DEL INTERMITENTE TRASERO |
