Toyota CH-R Manual de Taller: InstalaciÓn

INSTALACIÓN

PROCEDIMIENTO

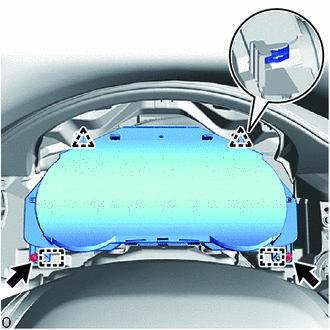

1. INSTALE EL CONJUNTO DEL JUEGO DE INSTRUMENTOS

(a) Conecte los 2 conectores para instalar el conjunto del juego de instrumentos.

(b) Enganche las guías y los clips.

(c) Instale los 2 tornillos.

2. INSTALE EL SUBCONJUNTO DEL EMBELLECEDOR DEL PANEL DE INSTRUMENTOS N° 2

Haga clic aquí

3. INSTALE EL CONJUNTO DE LA MOLDURA DE ACABADO DEL GRUPO DE INSTRUMENTOS

Haga clic aquí

4. INSTALE EL CONJUNTO DEL EMBELLECEDOR DE LA MOLDURA DE ACABADO DEL GRUPO DE INSTRUMENTOS

Haga clic aquí

5. INSTALE EL SUBCONJUNTO DE LA MOLDURA DE ACABADO DEL GRUPO DE INSTRUMENTOS

Haga clic aquí

6. CONECTE EL CABLE AL TERMINAL NEGATIVO DE LA BATERÍA

Haga clic aquí

AVISO:

Cuando desconecte el cable, deberá reiniciar algunos sistemas después de volver a conectar el cable.
