Toyota CH-R Manual de Taller: Componentes

COMPONENTES

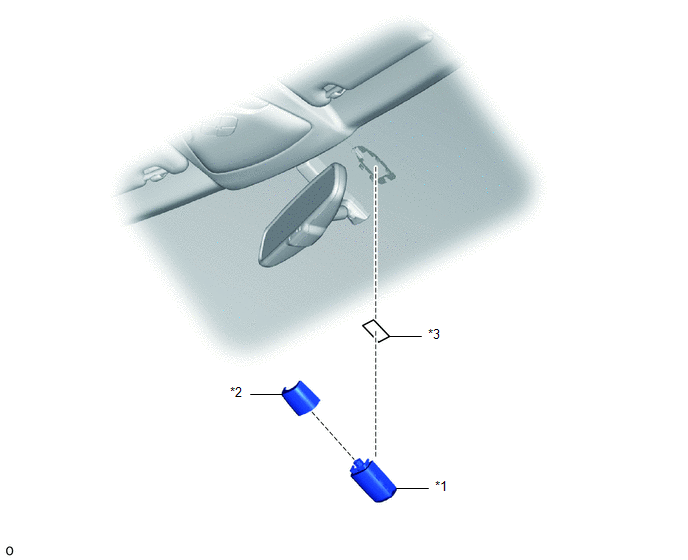

ILUSTRACIÓN

*1

SENSOR DE LLUVIA

*2

CUBIERTA DEL SENSOR DE LLUVIA

*3

CINTA DEL SENSOR DE LLUVIA

-

-

    Sensor De Lluvia
    ...

    ExtracciÓn
    EXTRACCIÓN PROCEDIMIENTO 1. EXTRAIGA LA CUBIERTA DEL SENSOR DE LLUVIA (a) Suelte el tope tirando de él, como se muestra en la ilustración. *a Tope ...
