INSTALACIÓN
PROCEDIMIENTO
1. INSTALE EL AIRBAG DEL ASIENTO TRASERO

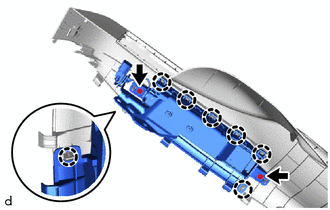

(a) Enganche las garras para instalar el airbag del asiento trasero. |
|
(b) Instale los 2 tornillos.
2. INSTALE EL EMBELLECEDOR LATERAL DEL ASIENTO TRASERO
Haga clic aquí
