UBICACIÓN DE LAS PIEZAS
ILUSTRACIÓN
*1 |
ECM |
*2 |
BLOQUE DE RELÉS DEL COMPARTIMIENTO DEL MOTOR N° 1 |

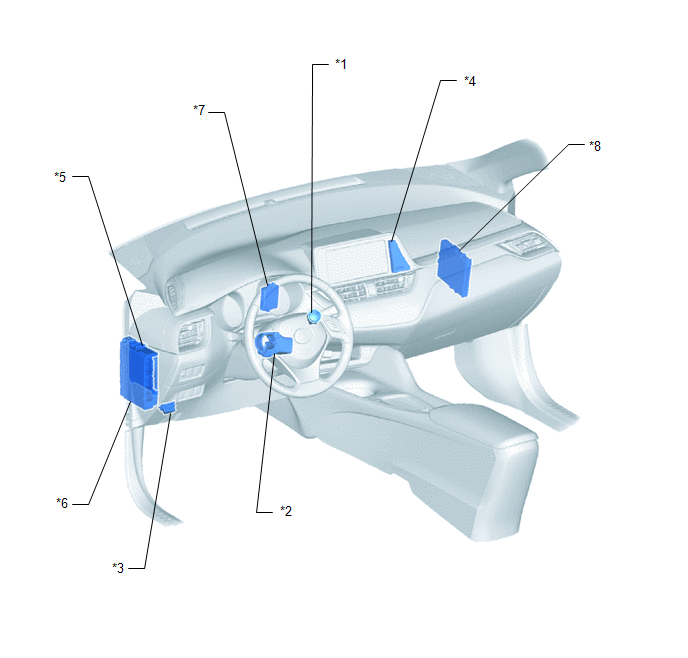

ILUSTRACIÓN
*1 |
INTERRUPTOR DEL MOTOR |
*2 |
ECU DE BLOQUEO DE LA DIRECCIÓN (CONJUNTO DEL SOPORTE SUPERIOR O ACTUADOR DEL MECANISMO DE BLOQUEO DE LA DIRECCIÓN) |
*3 |
DLC3 |
*4 |
CONJUNTO DEL RELOJ - INDICADOR LUMINOSO DE SEGURIDAD |
*5 |
ECU PRINCIPAL DE LA CARROCERÍA (ECU DE LA RED MÚLTIPLEX DE LA CARROCERÍA) |
*6 |
CONJUNTO DEL BLOQUE DE EMPALMES DEL PANEL DE INSTRUMENTOS - FUSIBLE AM2 - FUSIBLE ECU-IG2 N° 3 - FUSIBLE STRG LOCK - FUSIBLE ECU-B N° 1 |
*7 |
CAJA DE CÓDIGOS ID (ECU DEL CÓDIGO DEL INMOVILIZADOR) |
*8 |
ECU DE CERTIFICACIÓN (CONJUNTO DE LA ECU DE LA LLAVE INTELIGENTE) |
